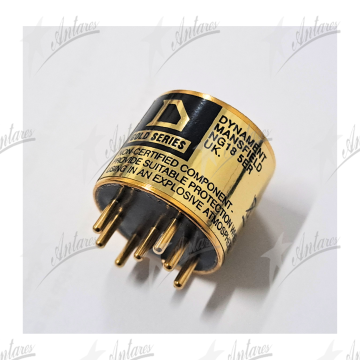

DYNAMENT GOLD INFRARED MSH-HC/NC/TC

• Measures methane at both % LEL levels and up to 100 % vol as well as general hydrocarbons in % LEL levels

• Extended operating temperature range of -40°C to +75°C

• Superior performance from -20°C to +50°C when compared to Standard noncertified

sensor

• Direct replacement for HC/NC/TC sensor

• Optional, integral anti-condensation heater

• Reduced baseline temperature dependency when compared to Standard noncertified

sensor

• Excellent baseline repeatability after temperature cycling

• Minimum device to device temperature dependency variation

• Housing and internal optical paths constructed from grade 316L stainless steel

• Encapsulation using epoxy resin for maximum mechanical stability

• Standard sensor size

• Temperature compensated detector elements

• Fast Response

• Internal temperature sensor to allow accurate temperature compensation

• Low power

• Gas diffusion sampling
