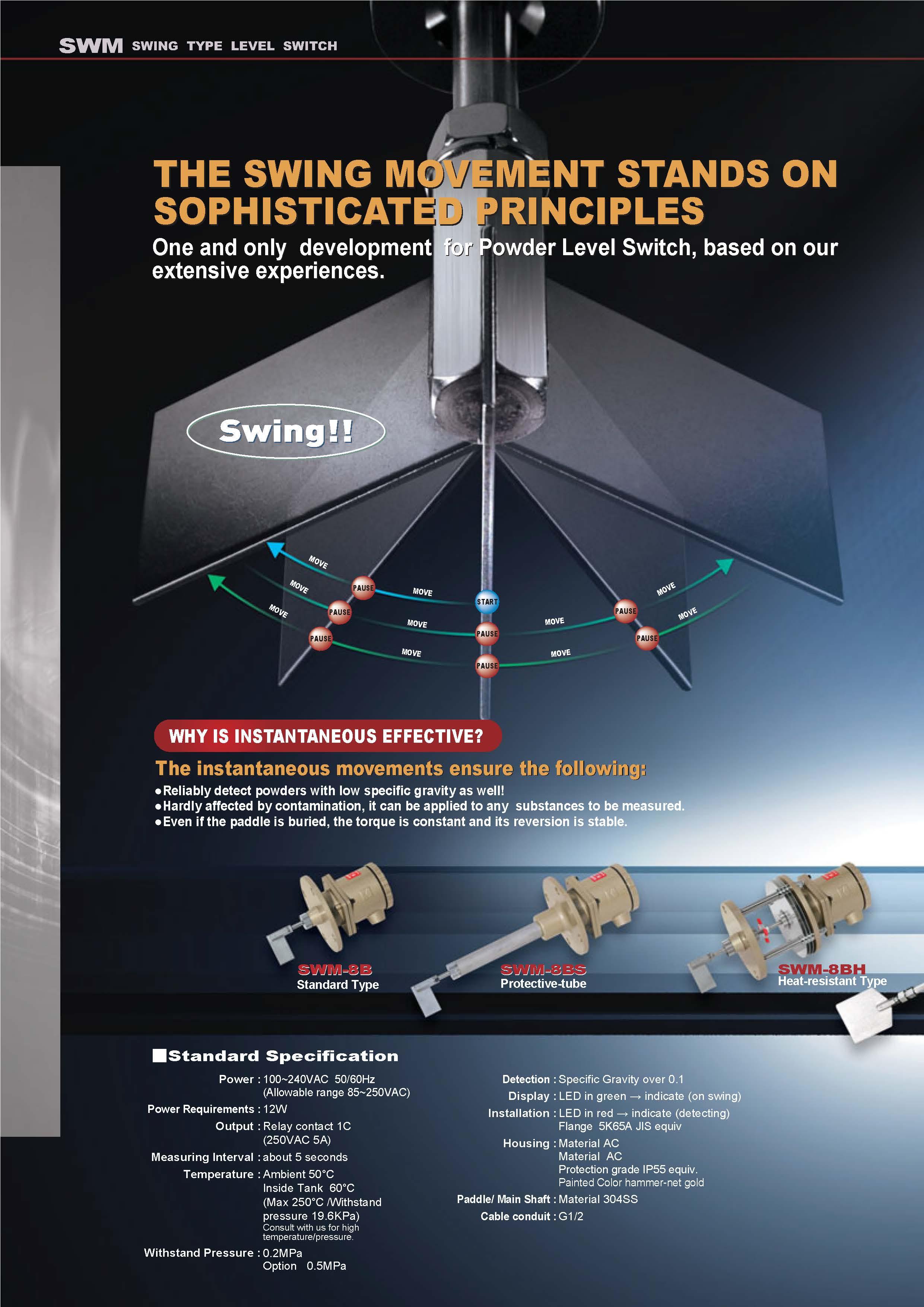

KANSAI LEVEL SWITCH SWM-8B

● Reliably detect powders with low specific gravity as well.

● Hardly affected by contamination, it can be applied to any substances to be measured.

● Even if the paddle is buried, the torque is constant and its reversion is stable.

Standard Specification

Power : 100~240VAC 50/60Hz (Allowable range 85~250VAC)

Power Requirements : 12W

Output : Relay contact 1C (250VAC 5A)

Measuring Interval : about 5 seconds

Temperature : Ambient 50°C Inside Tank 60°C (Max 250°C /Withstand pressure 19.6KPa) *Consult with us for high temperature/pressure.

Withstand Pressure : 0.2MPa

Option 0.5MPa

Detection : Specific Gravity over 0.1

Display : LED in green → indicate (on swing)

Installation : LED in red → indicate (detecting)

Flange 5K65A JIS equiv

Housing : Material AC

Material AC

Protection grade IP55 equiv.

Painted Color hammer-net gold

Paddle/ Main Shaft : Material 304SS

Cable conduit : G1/2
