KIEPE PULL ROPE EMERGENCY STOP SWITCH HEN 231 91043450231

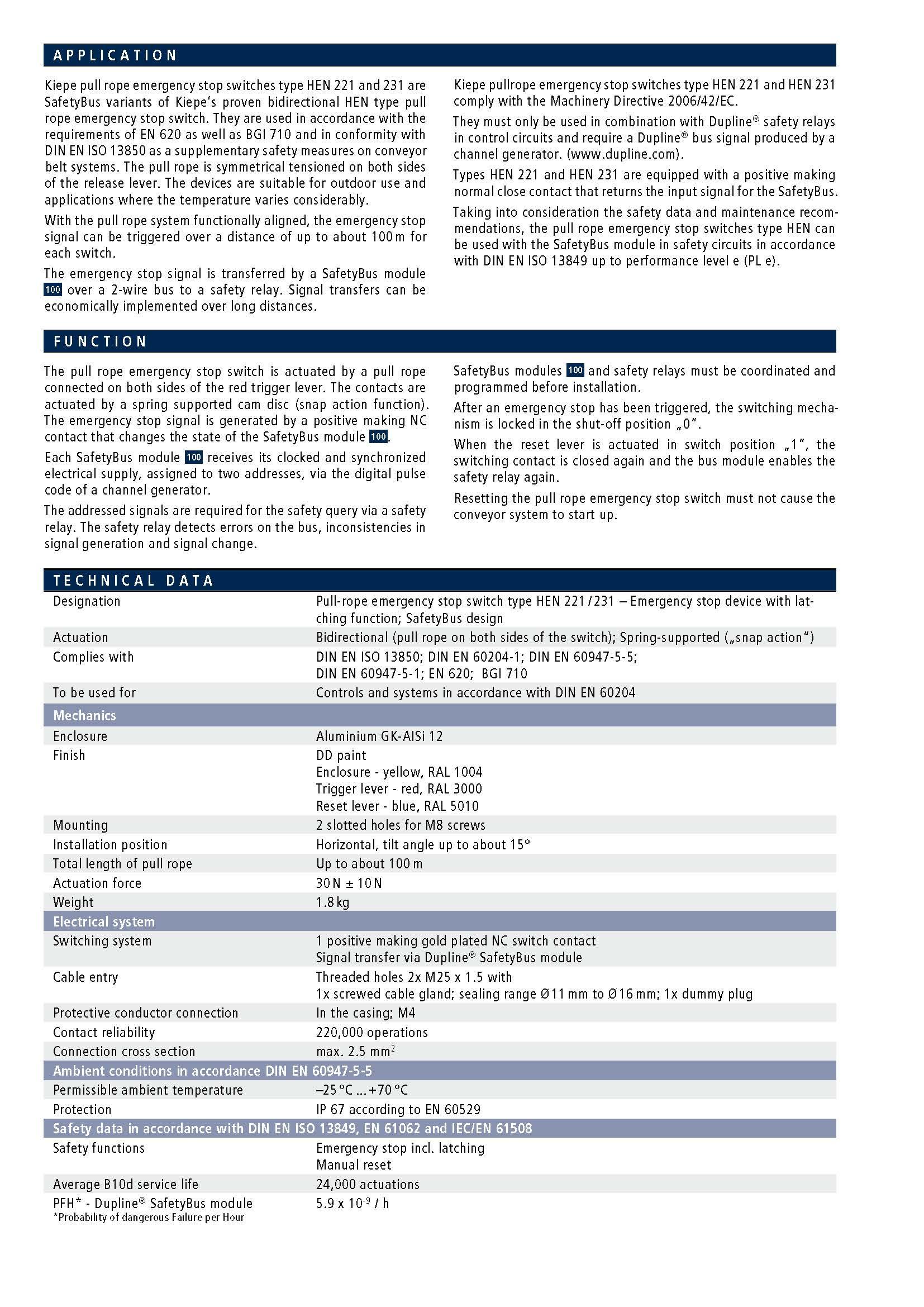

The emergency stop signal can be triggered over a distance of up to about 100 m for

each switch. It can transferred by a SafetyBus module 100 over a 2-wire bus to a safety relay.

The pull rope emergency stop switch is actuated by a pull rope connected on both sides of the red trigger lever. The contacts are actuated by a spring supported cam disc (snap action function). The safety relay detects errors on the bus, inconsistencies in signal generation and signal change.
