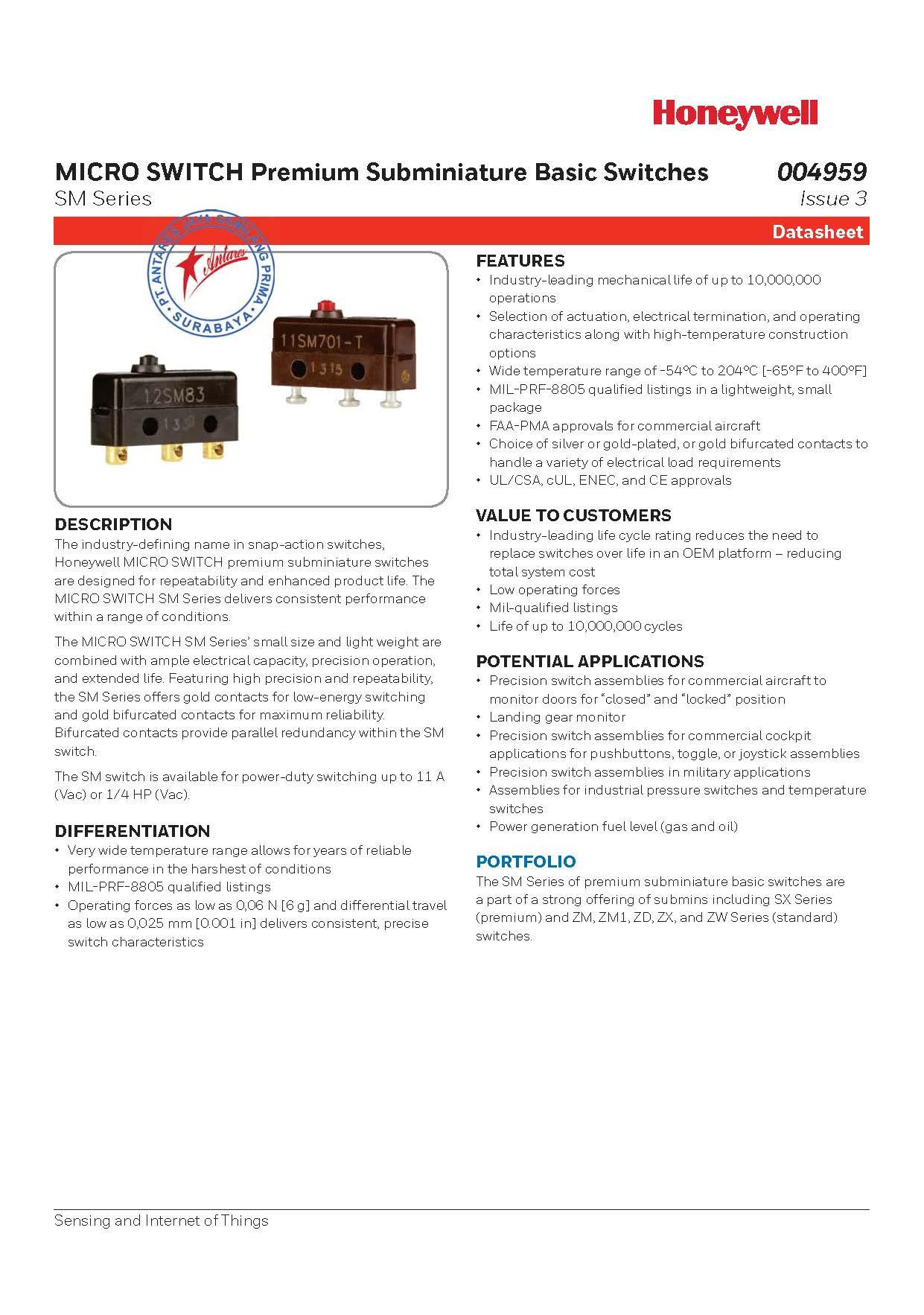

HONEYWELL MICRO SWITCH 311SM6-T

• Industry-leading mechanical life of up to 10,000,000 operations

• Selection of actuation, electrical termination, and operating characteristics along with high-temperature construction options

• Wide temperature range of -54°C to 204°C [-65°F to 400°F]

• MIL-PRF-8805 qualified listings in a lightweight, small package

• FAA-PMA approvals for commercial aircraft

• Choice of silver or gold-plated, or gold bifurcated contacts to handle a variety of electrical load requirements

• UL/CSA, cUL, ENEC, and CE approvals

Application

• Precision switch assemblies for commercial aircraft to monitor doors for “closed” and “locked” position

• Landing gear monitor

• Precision switch assemblies for commercial cockpit applications for pushbuttons, toggle, or joystick assemblies

• Precision switch assemblies in military applications

• Assemblies for industrial pressure switches and temperature switches

• Power generation fuel level (gas and oil)

311SM6-T :

• Recommended for 6,38 mm [0.251 in] roller lever

• Operating force : 0,39 N

• Release force : 0,07 N

• Pretravel 2,16 mm

• Overtravel 0,46 mm

• Differential travel 0,48 mm

• Operating position : 14,2 mm ±1,5 mm
