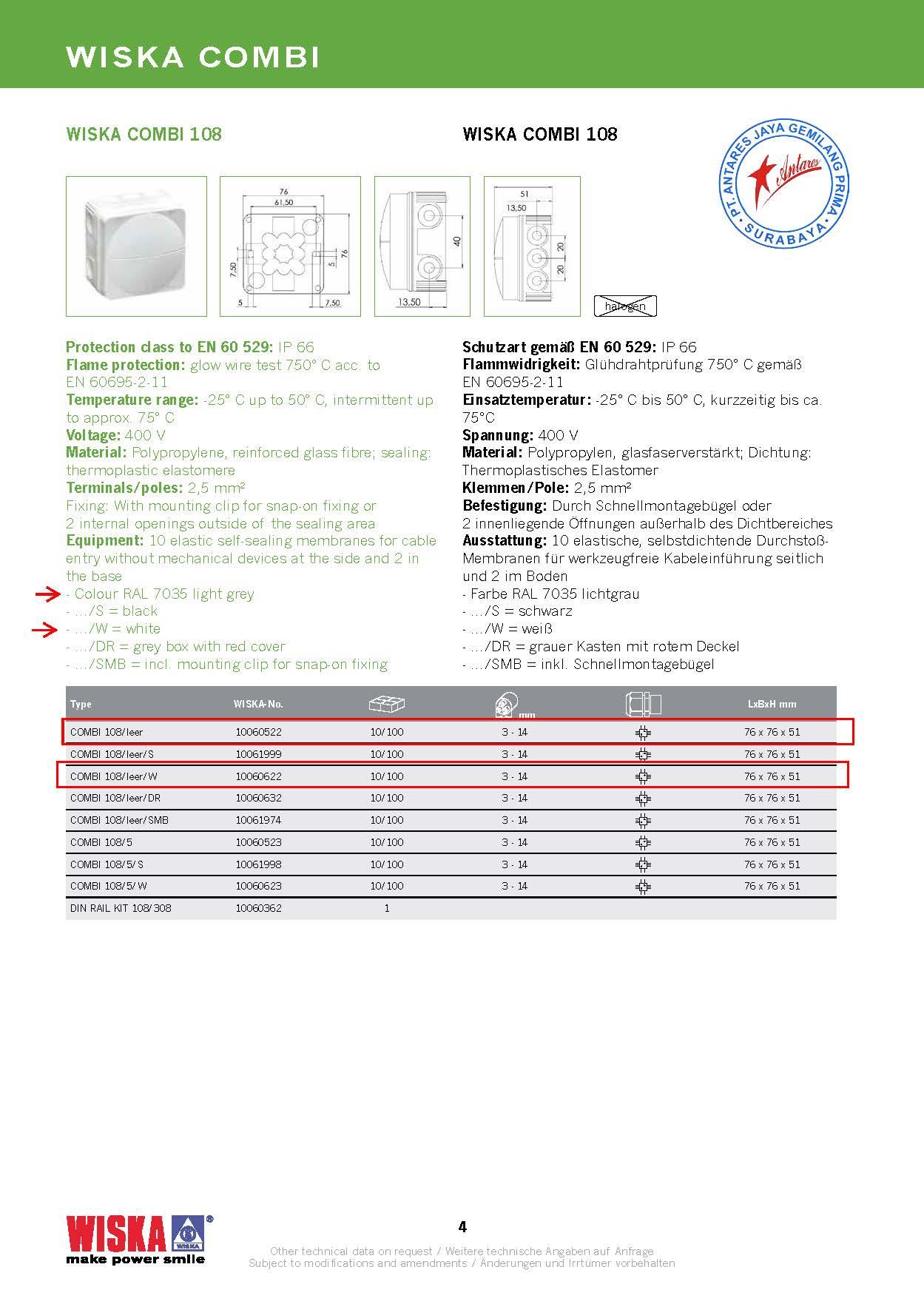

WISKA JUNCTION BOX COMBI 108 76 X 76 X 51

Protection class to EN 60 529: IP 66

Flame protection: glow wire test 750° C acc. to EN 60695-2-11

Temperature range: -25° C up to 50° C, intermittent up to approx. 75° C

Voltage: 400 V

Material: Polypropylene, reinforced glass fibre; sealing: thermoplastic elastomere

Terminals/poles: 2,5 mm2

Fixing: With mounting clip for snap-on fixing or 2 internal openings outside of the sealing area

Equipment: 10 elastic self-sealing membranes for cable entry without mechanical devices at the side and 2 in the base

RAL 9001

- .../S = black

- .../W = white

- .../DR = grey box with red cover

- .../SMB = incl. mounting clip for snap-on fixing
